Wall plugs explained: the right fixing for plasterboard, brick and tile
Nearly every failed fixing comes down to the same mistake. Someone used a plug meant for brick in a plasterboard wall, tightened the screw, felt it go soft, and tightened it more. The plug spun in the hole, chewed out the plaster, and the whole thing came away a week later with a shelf of books attached.
Getting this right takes about thirty seconds of checking before you drill.
First: what is your wall made of?
Knock on it. A hollow, drum-like sound means plasterboard over a timber or metal frame, which is most internal walls in homes built or refurbished in the last few decades. A dull, solid thud means masonry: brick, block or concrete.
If you are unsure, drill a small pilot hole somewhere hidden. Plasterboard gives way almost instantly and produces fine white dust. Masonry resists and produces gritty red or grey dust.
One more check is worth doing on a hollow wall: find the studs. A screw driven straight into a timber stud needs no plug at all and will always be stronger than any plasterboard anchor. Studs usually sit at regular spacings, and a magnet will find the screw heads holding the board on.
Before any hole goes in, check for cables and pipes. Anything directly above or below a socket or switch should be treated as live until a detector says otherwise.
Solid walls: raw plugs
The familiar coloured plastic plug is designed for masonry. You drill a hole, push the plug in flush, and the screw expands it against the sides of the hole.
Colour usually indicates size, and the common convention runs yellow for the smallest, then red, then brown, then blue for the largest. Brands do vary, so take the drill size from the pack rather than from memory. The rule that never changes is that the drill bit matches the plug, and the screw matches the plug, not the other way round.
Two things make the difference between a fixing that holds and one that does not. Drill slightly deeper than the plug is long, so the plug seats fully instead of stopping on drill dust. And blow or vacuum the dust out before pushing the plug in.
Use masonry plugs for shelves on brick, TV brackets on block, and anything on an external or party wall.
Plasterboard: three different answers
Hollow walls need a fixing that grips the back face of the board rather than squeezing against the sides of a hole.
Self-drilling anchors are the quickest. They screw straight into the board with a screwdriver, no drill needed, then take a screw in the middle. They suit light to moderate loads: a picture, a small shelf, a curtain pole bracket.
Butterfly or aircraft anchors push through a drilled hole and then spread open behind the board, spreading the load across a much wider area. They hold more than a self-drilling anchor and are the right choice for a heavier shelf or a bathroom cabinet.
Expansion tube plugs work similarly, collapsing behind the board as the screw pulls them in.
What none of them do is turn plasterboard into brick. A hollow wall has real limits, and anything genuinely heavy, such as a large TV, a wall-mounted radiator or kitchen units, should be fixed into the studs or into the masonry behind.
Tiles: drill the tile, fix the wall behind
Tile is not the fixing surface. Whatever sits behind it is, so you choose the plug for that, and the only special part is getting through the glaze without cracking it.
Start slowly, with the hammer action off, because hammer action on a tile cracks it. A strip of masking tape over the spot stops the bit skating. Once you are through the tile, switch to the setting the wall behind needs.
Choosing the screw length
A useful rule for solid walls: the screw should go into the plug by at least the full length of the plug, after passing through whatever you are fixing. So for a 25mm plug holding an 18mm bracket, you want a screw around 45mm rather than 30mm.
On plasterboard, longer is not better. Once the anchor has gripped the back of the board, extra screw length does nothing except risk hitting something inside the cavity.
What to buy

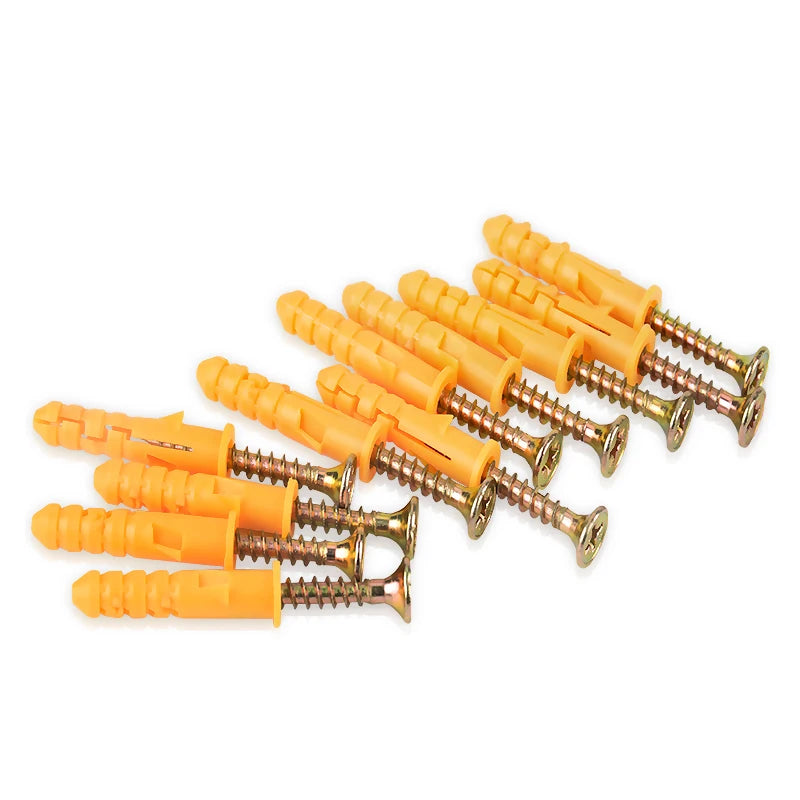

- Yellow wall plugs and screws, 50 piece set - the everyday light-duty set for masonry.
- Grey heavy-duty wall plugs and screws - for brick and block where the load is real.
- Self-drilling plasterboard anchors, 100 pack - no drill needed, ideal for lighter fixings.
- Butterfly expansion anchors for plasterboard - spread the load for heavier shelves.
The full range is in screws and anchors, with more in hardware and fixings.
Frequently asked questions
My plug spins in the hole. What now?
The hole is too big for that plug. Do not force it. Move along and drill a fresh hole a few centimetres away, or step up to the next plug size, which needs a larger drill bit and a larger screw.
Can I reuse a wall plug?
Rarely worth it. A plug that has been expanded once has already deformed, and a reused plug in a reused hole is the classic reason a fixing feels tight and then lets go. Plugs are inexpensive; the shelf is not.
How much weight will a plasterboard fixing hold?
It depends on the anchor and the thickness of the board, and the pack will give a figure. Treat that figure as a maximum under ideal conditions, spread the load across several fixings, and put anything heavy into a stud instead.
